Hoshizaki R1A-FG Steelheart Series Single Glass Door Reach-In Refrigerator, 27", 115 V

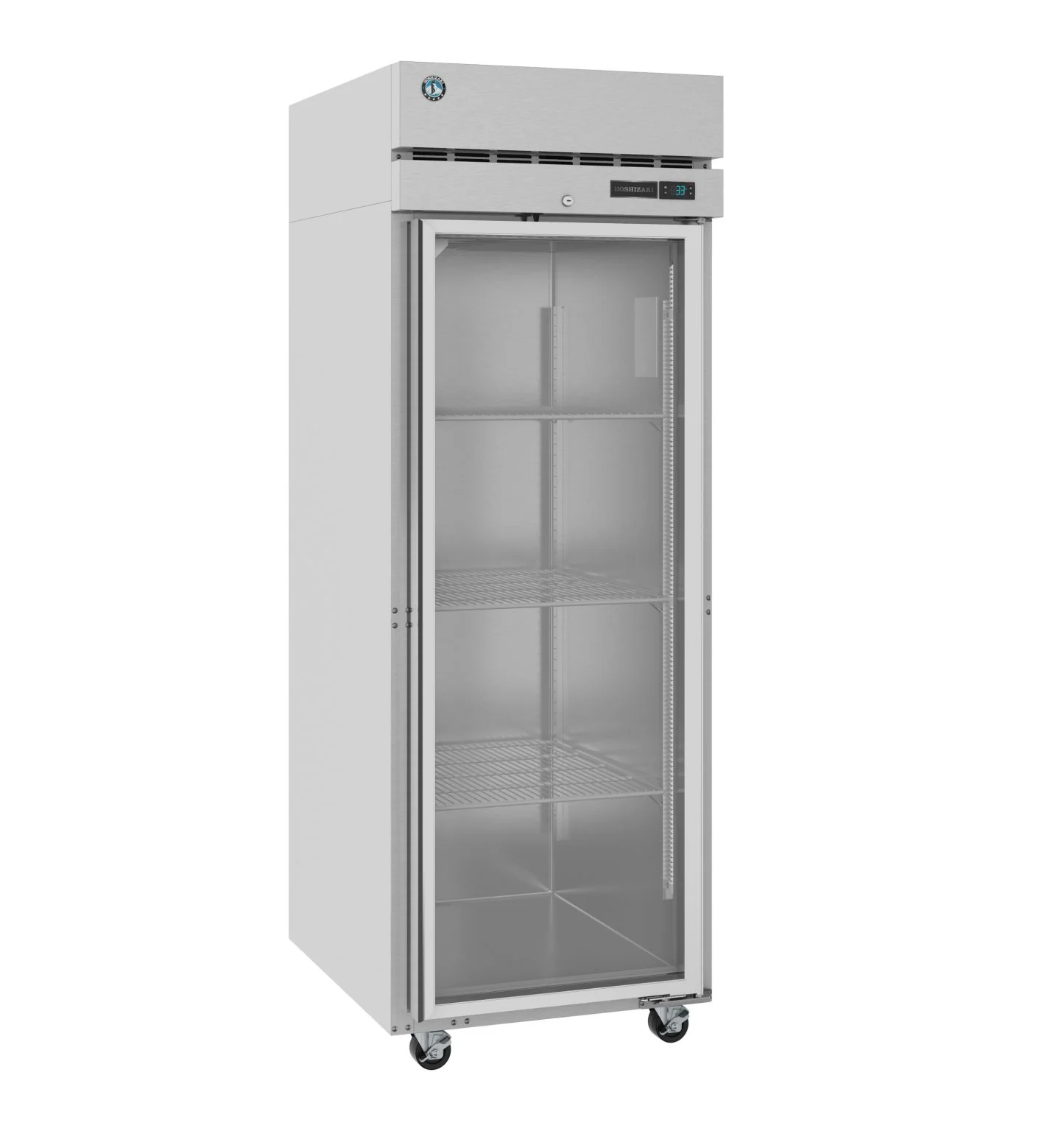

The Hoshizaki 23 CuFt Single Glass Door Reach-In Refrigerator has a durable construction with a stainless steel interior and stainless steel exterior front, sides and top. It features a glass door with energy-efficient LED interior lights to offer a clear view without opening the fridge.

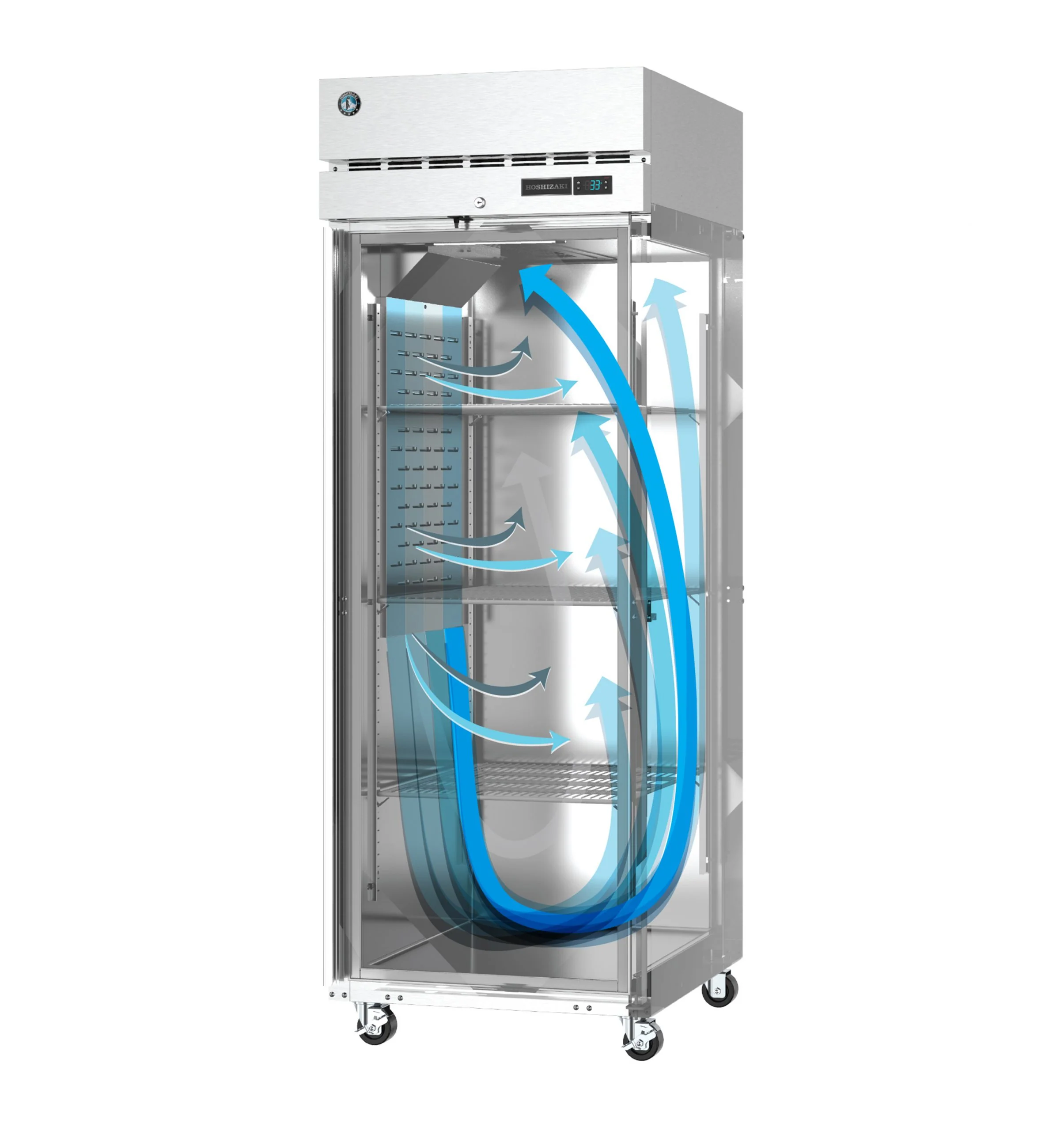

The commercial refrigerator is designed with an environmentally friendly R290 hydrocarbon refrigerant and a unique ducted air distribution system for an optimal performance. The cabinet and doors are insulated with 2-3/8" CFC-free, foamed-in-place polyurethane to maintain cabinet temperatures.
Made with an exclusive stepped door design to protect the recessed door gasket. The doors are field reversible for ultimate versatility while the extruded aluminum flush mount door handle offers quick and easy access. Additionally, the unit features a solid state digital controller with temperature alarms and an LED display for effortless use and to keep the operators informed on the refrigerator's condition.
The commercial reach-in refrigerator includes e-coated evaporator coils to help fight corrosion and improve longevity. The refrigerant flow is controlled with a thermostatic valve. The unit is designed with an energy-efficient automatic hot gas condensate evaporator to evaporate condensate before it is vented to the cabinet.

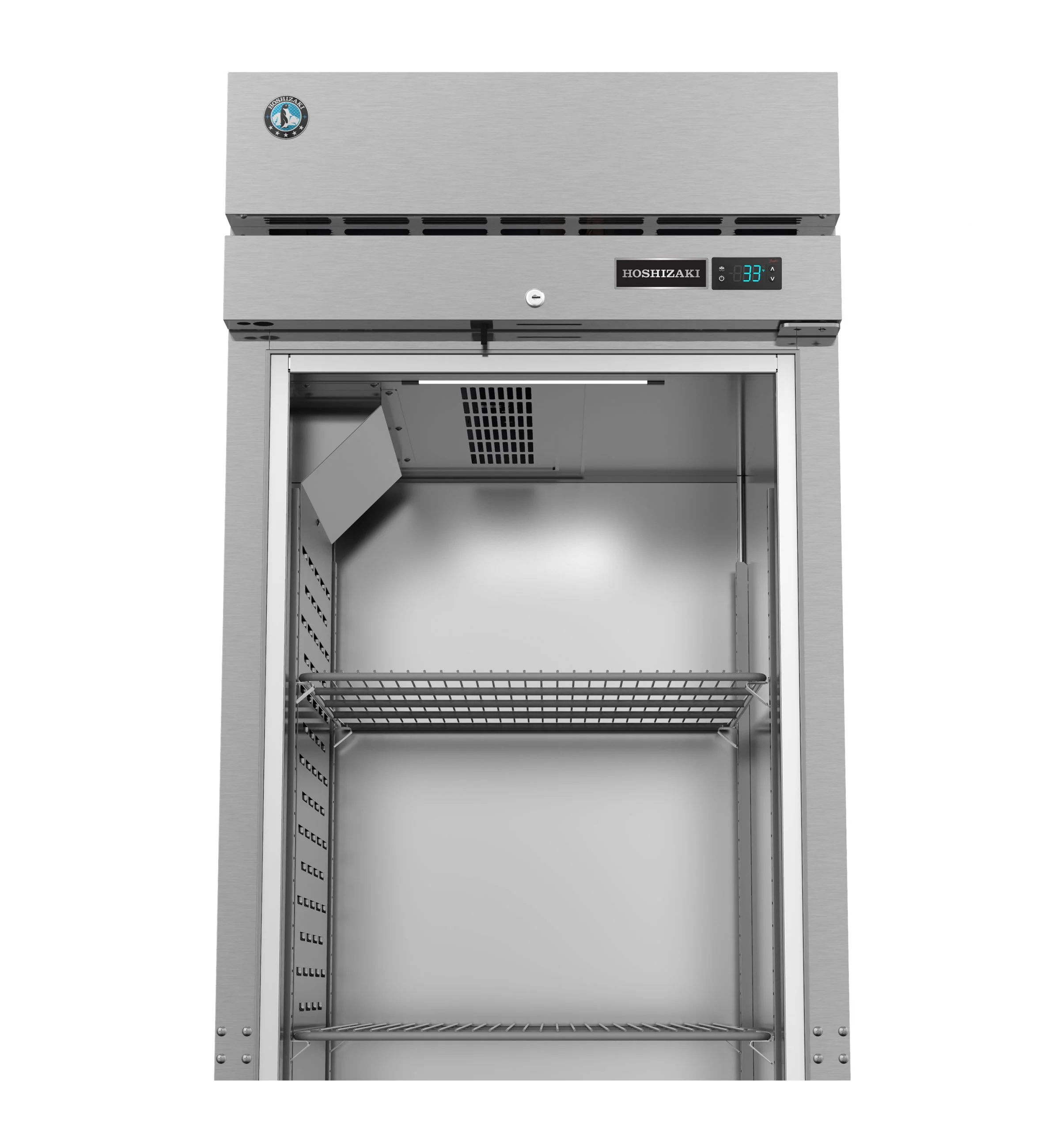

Includes three epoxy-coated wire shelves that are held up with stainless steel shelf supports. The commercial refrigerator has four 4" casters (two with brakes) for efficient cleaning.
Capacity: 23 CuFt
Doors: 1
Number of Shelves: 3
Shelf Measurements: 21.25" width x 26" depth
Product Measurements (including casters): 79.5" high x 27.5" width x 34.5" depth
Material: Stainless Steel, Glass
Crated Weight: 350 lb
Electrical: 115V/60/1
Amps: 5
Plug: NEMA 5-15P
Cord Length: 10'
Refrigerant: R290
Energy Consumption: 2.47 kWh/day
Heat rejection: 639 BTU/hr
Ambient Temperature Range: 45°F to 100°F
Warranty: 3 Year Parts and Labour, 5 Years on Compressor Parts
FILES
Spec Sheet
Instruction Booklet
Parts Booklet
Service Manual
